Change the angle of view and you'll see a completely different design.

BELLOWS PRINT

  • Large-format inkjet printing
ベローズプリント
ベローズプリント

①Technical Overview | Product Specifications

The gimmick of changing the viewing angle of the bellows fold to create a different design has been around for a long time.


(Example)
Lenticular printing

BELLOWS PRINT is a printing technology that reproduces the above bellows gimmick in the microscopic world, and is a patented product that uses special data processing that can be achieved by printing with layers of UV-curable ink.

In recent years, with the advent of UV printers, 2.5D (thick) printing has become easier, and BELLOWS PRINT was born.

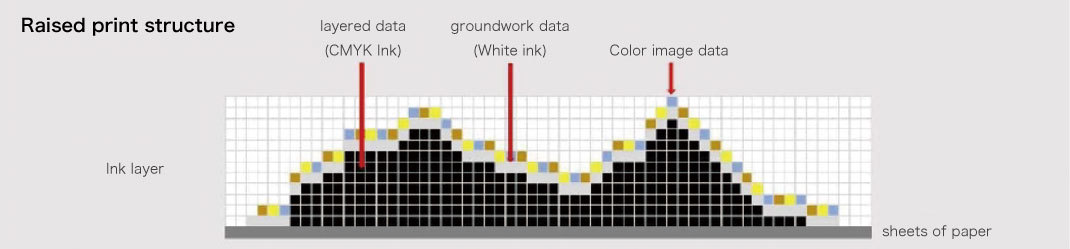

Thick printing, which creates an uneven surface by printing with multiple layers of UV ink that hardens instantly when exposed to UV light.


Use a UV-curable printer that prints by curing liquid ink.

Use a UV-curable printer that prints by curing liquid ink.



Since this is a sign and display product, it is necessary to use a 2D flatbed printer instead of a 3D printer which has a slower production speed. However, it was difficult to establish production with 2D flatbed printers because the print head could not move in the height direction and there were limitations in the ability to process different layers of data.SO-KEN has developed a special data creation method to overcome the aforementioned issues and has succeeded in establishing BELLOWS PRINT production.

Complete with inkjet printing only. Printing technology using multilayer

Lenticular printing

This is a printing technology that reproduces the above bellows gimmick in the microscopic world by layering inkjet UV ink.

Ink specifications and weather resistance

MIMAKI - Genuine UV curable ink CMYKW

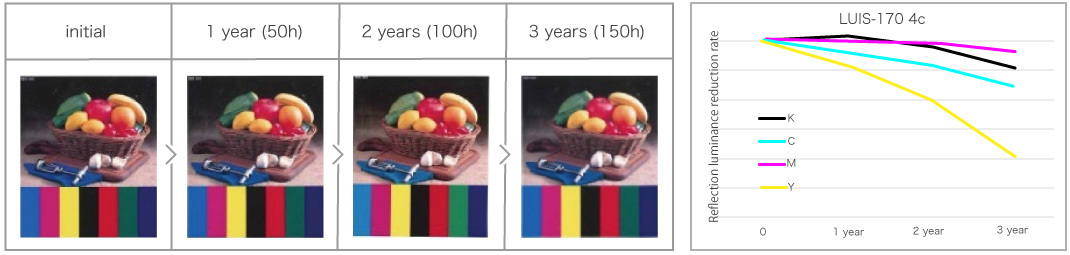

Weather resistance

Lenticular printing

Weather resistance test conditions ISO11341 1 Irradiance 60w/ ㎡ Permanent irradiation
Black panel temperature 65 Test chamber temperature 38
Relative humidity 70%
Equivalent to 1 year = 500 hours (reference value)
Shower every 2 hours for 18 minutes

②Notes on installation and use

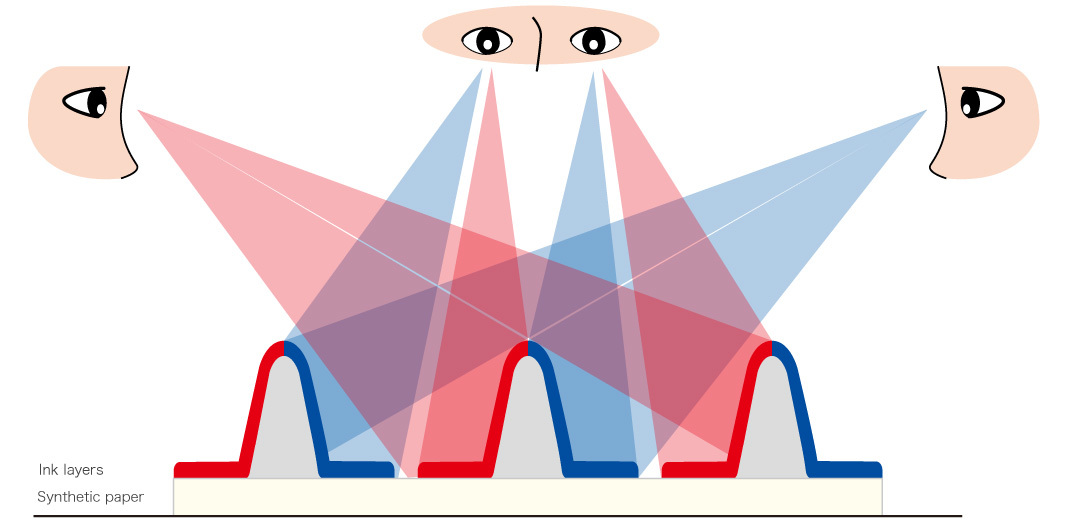

How it looks depending on the structure

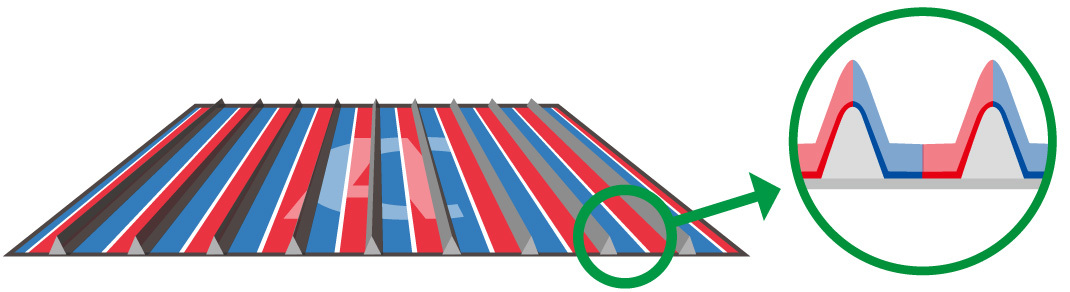

The surface has regular unevenness. The two types of patterns printed on the bottom are thinned out and the convexity is used to adjust the visible area.

How it looks from the left side / How it looks from the front (the left and right patterns appear to be mixed) / How it looks from the right side

How it looks from the left side / How it looks from the front (the left and right patterns appear to be mixed) / How it looks from the right side

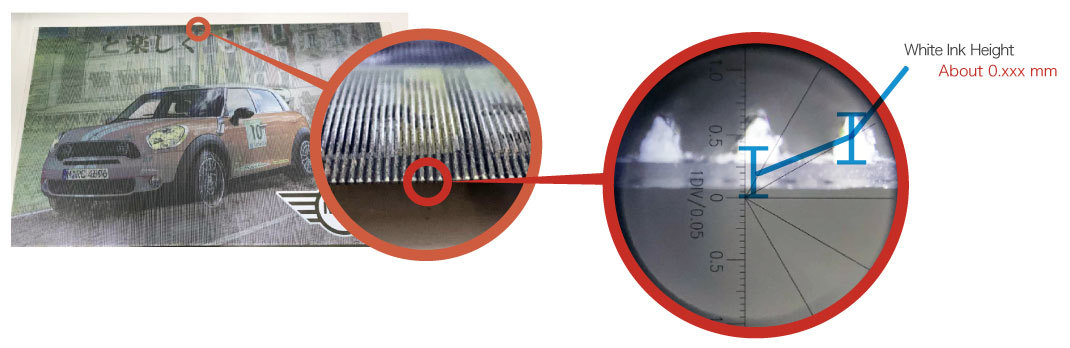

Frontal oblique view / Enlarged view

Frontal oblique view / Enlarged view

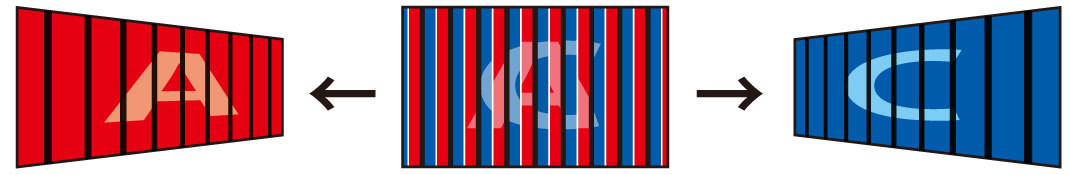

Visibility pattern

The two designs are interchangeable when viewed from certain angles.

View from the left side

It looks like a red design.

View from the front

It appears to be a mixture of both red and blue designs.

View from the right side

It looks like a blue design.

Lenticular printing

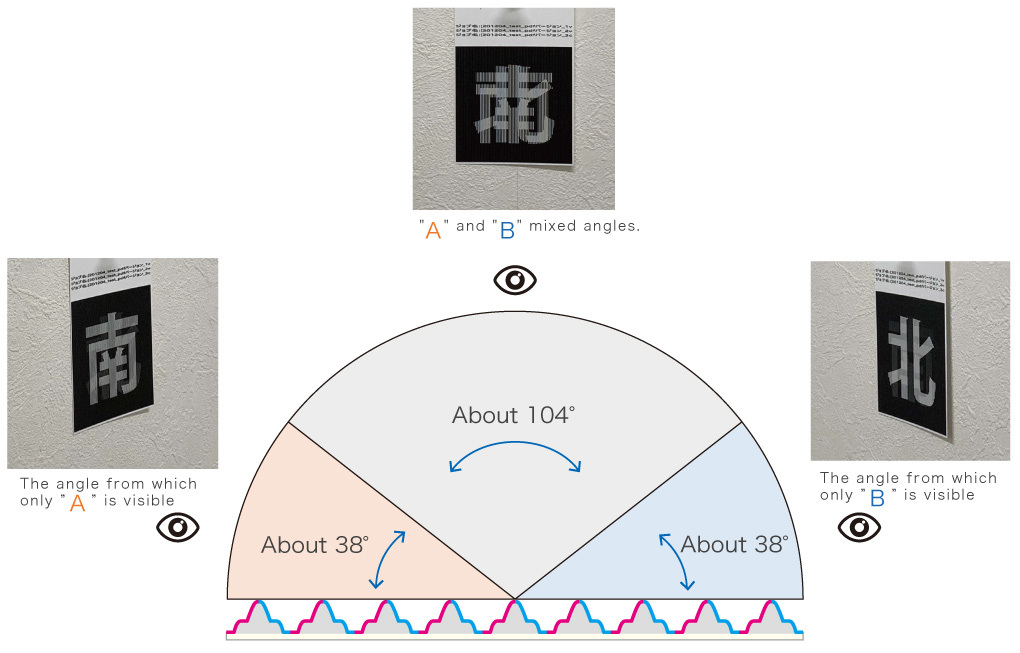

About angles

The angle at which you can almost see only one design is about 38°, and after 38°, the design overlaps with the other design, making a 5:5 ratio at the center.There will be an error depending on the color and design.

Lenticular printing

BELLOWS PRINT angle (normal type)

③About Triggers

Types of triggers for changing the design of BELLOWS PRINT

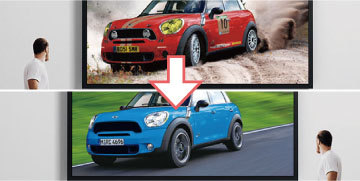

Trigger (1)

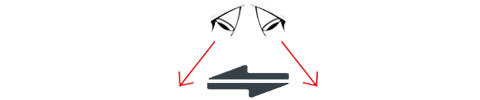

Just change the viewing angle from left to right.
Lenticular printing

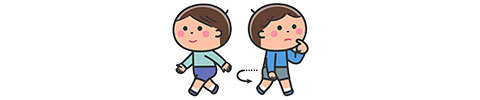

Trigger (2)
It switches between going and coming.
Lenticular printing
